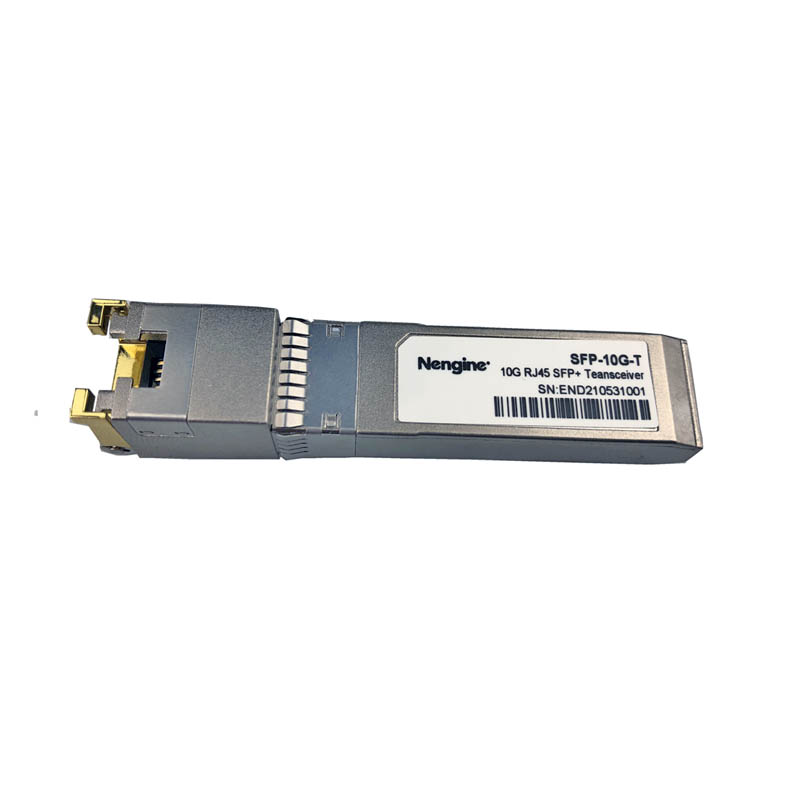

10GBASE-T Copper SFP+ Transceiver

NM-280-RJ45

Buy Now >

10GBASE-T Copper SFP+ Transceiver

  • Form Factor: SFP
  • Rate:10Gbps
  • Wave:--nm
  • TX/RX:---
  • Connector:--
  • DDM:---
Features Applications Compatible Show All
  • Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
  • Hot-pluggable SFP footprint
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10 Gigabit Ethernet over Cat 6a cable
  • Ambient Operating temperature: 0°C to +65°C
  • NEME’S NM-280-RJ45 Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . NM-280-RJ45 uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.

Features:

  • Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
  • Hot-pluggable SFP footprint
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10 Gigabit Ethernet over Cat 6a cable
  • Ambient Operating temperature: 0°C to +65°C

Applications:

  • NEME’S NM-280-RJ45 Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . NM-280-RJ45 uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.

Compatible:
