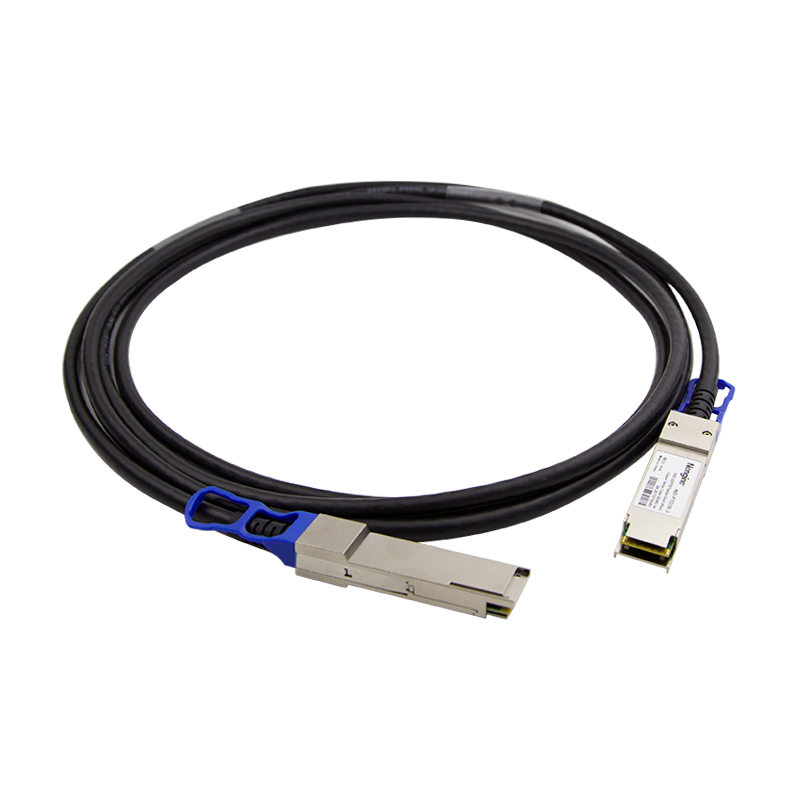

Customized 100G QSFP28 Passive Direct Attach Copper Twinax Cable 30AWG

ND-P7D30-XXX

Buy Now >

Customized 100G QSFP28 Passive Direct Attach Copper Twinax Cable 30AWG

  • Form Factor: QSFP28
  • Length:0.5~3m
Features Applications Compatible Show All
  • QSFP28 conforms to the Small Form Factor SFF-8665
  • 4-Channel Full-Duplex Passive Copper Cable Transceiver
  • Support for multi-gigabit data rates :25.78Gb/s (per channel)
  • Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
  • Copper link length up to 3m (passive limiting)
  • High-Density QSFP 38-PIN Connector
  • Power Supply :+3.3V
  • Low power consumption: 0.02 W (typ.)
  • I2C based two-wire serial interface for EEPROM signature which can be customized
  • Temperature Range: 0~ 70 ～C
  • ROHS Compliant
  • 100 Gigabit Ethernet
  • Fiber Channel over Ethernet
  • Data storage and communication industry
  • Switch/router/HBA
  • Enterprise network
  • SAN
  • Data Center Network?
    with Cisco, intel, Arista, Juniper, Dell, Brocade, Huawei, H3C and other brands

Features:

  • QSFP28 conforms to the Small Form Factor SFF-8665
  • 4-Channel Full-Duplex Passive Copper Cable Transceiver
  • Support for multi-gigabit data rates :25.78Gb/s (per channel)
  • Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
  • Copper link length up to 3m (passive limiting)
  • High-Density QSFP 38-PIN Connector
  • Power Supply :+3.3V
  • Low power consumption: 0.02 W (typ.)
  • I2C based two-wire serial interface for EEPROM signature which can be customized
  • Temperature Range: 0~ 70 ～C
  • ROHS Compliant

Applications:

  • 100 Gigabit Ethernet
  • Fiber Channel over Ethernet
  • Data storage and communication industry
  • Switch/router/HBA
  • Enterprise network
  • SAN
  • Data Center Network?

Compatible:

    with Cisco, intel, Arista, Juniper, Dell, Brocade, Huawei, H3C and other brands
